Glass Bottle Sauce Filling Machine With Fruit Pulp Processing Equipment

Name: Glass Bottle Sauce Filling Machine With Fruit Pulp Processing Equipment
Brand: Ellison
Price: 1 USD

Glass Bottle Sauce Filling Machine With Fruit Pulp Processing Equipment Manufactures

Brand Name : Ellison

Model Number : PTCGF 24-24-8

Certification : CE/ BV / ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiated

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 7 sets per month

Delivery Time : 50 working days

Packaging Details : Standard export wooden case or pallet package

Processing type : Bird nest filling machine

Filling method : Piston type filling

Bottle type : Glass bottle

Cap type : Press cap

Filling valve : Can bear hot temperature

Filling material : Bird nest, sauce, mayonnaise etc

Driven type : Electric

Bottle delivery : Star wheel

Contact Now

Glass Bottle Bird Nest Filling Machine / Piston Type Sauce Filling Machine

General information

Project Name: PET / Glass Bottled Sauce Filling Machine				Sauce/Jam etc
Material	Shape	Filling volume	Filling level (mm)	Neck type
PET or Glass Bottle	Square or Round Bottle	100-2000ml	Distance from bottle neck According request	As request
Adjustable specifications of the bottle type	[Middle Mould Base]Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around packer Robert Packing Machine	12 23 34 46 3*5
User Ambient Conditions		Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Features

Washing heads

<1> Into bottle way is air conveyor direct connection with Bottle dial.
<2> All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
<3> 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<4> 304/316 stainless steel washing pump make the machine more durable.

Filling heads

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5> Efficient spray nozzle rinse thoroughly and save water for flushing

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5> Capping effect is stable and reliable ,Defective rate ≤0.2%

Flat conveyor

<1> Energy saving. High efficient. Adapt to customer factory layout
<2> Special lubrication system, keep products clean, health, safety
<3> Extended service life
<4> Electric eyes design keep whole line running safety and quickly
<5> Overload protection mechanism to effectively ensure the safety of the machine

FLOW CHAT - Plastic Bottle

1/ Water Treatment
2/ Sauce processing system
3/ Bottle Blowing Machine / Bottle Unscrambler
4/ Air Conveyor + Flat Conveyor
5/ Rotary Type 3 in 1 Filling Machine
6/ Light Checking
7/ Cooler & Shower
8/ Labeling Machine
9/ Date Code Printer
10/ Bottle Packaging Machine

FLOW CHAT - Glass Bottle

1/ Water Treatment
2/ Sauce processing system
3/ Bottle Unscrambler
4/ Flat Conveyor
5/ Rotary Type 3 in 1 Filling Machine
6/ Light Checking
7/ Cooler & Shower
8/ Labeling Machine
9/ Date Code Printer
10/ Bottle Packaging Machine

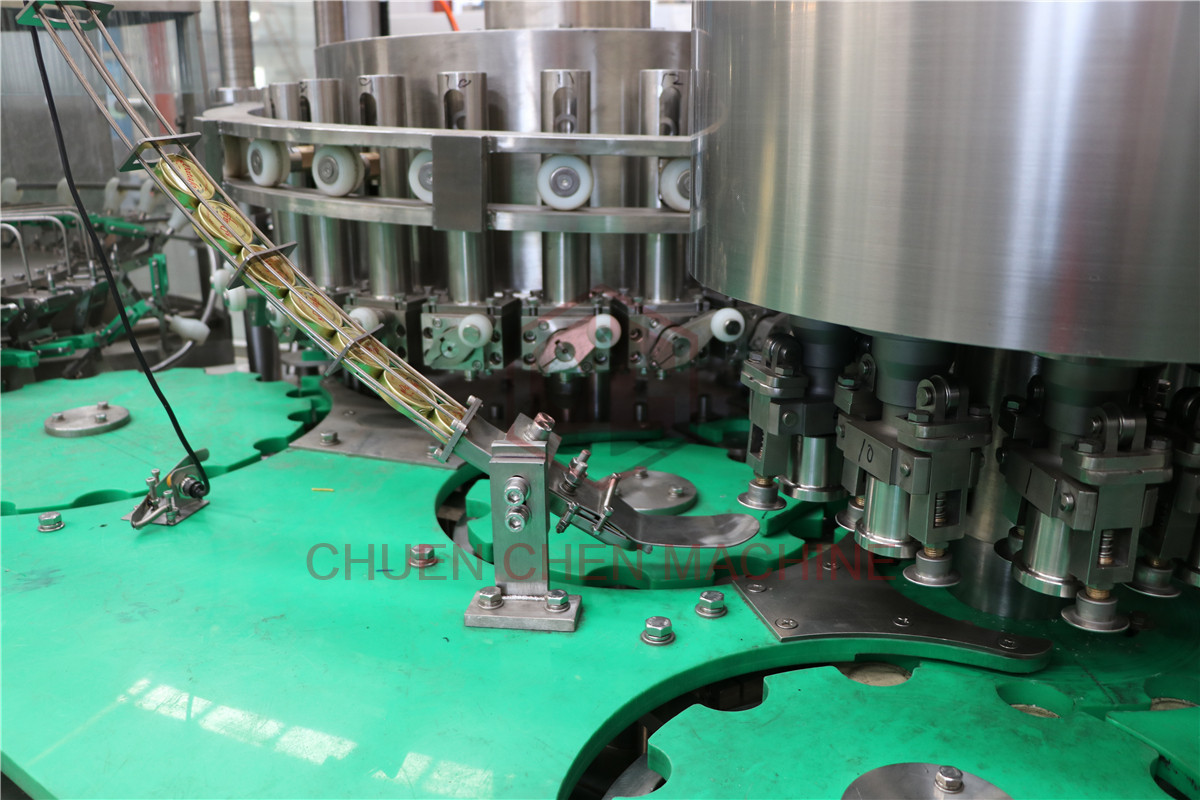

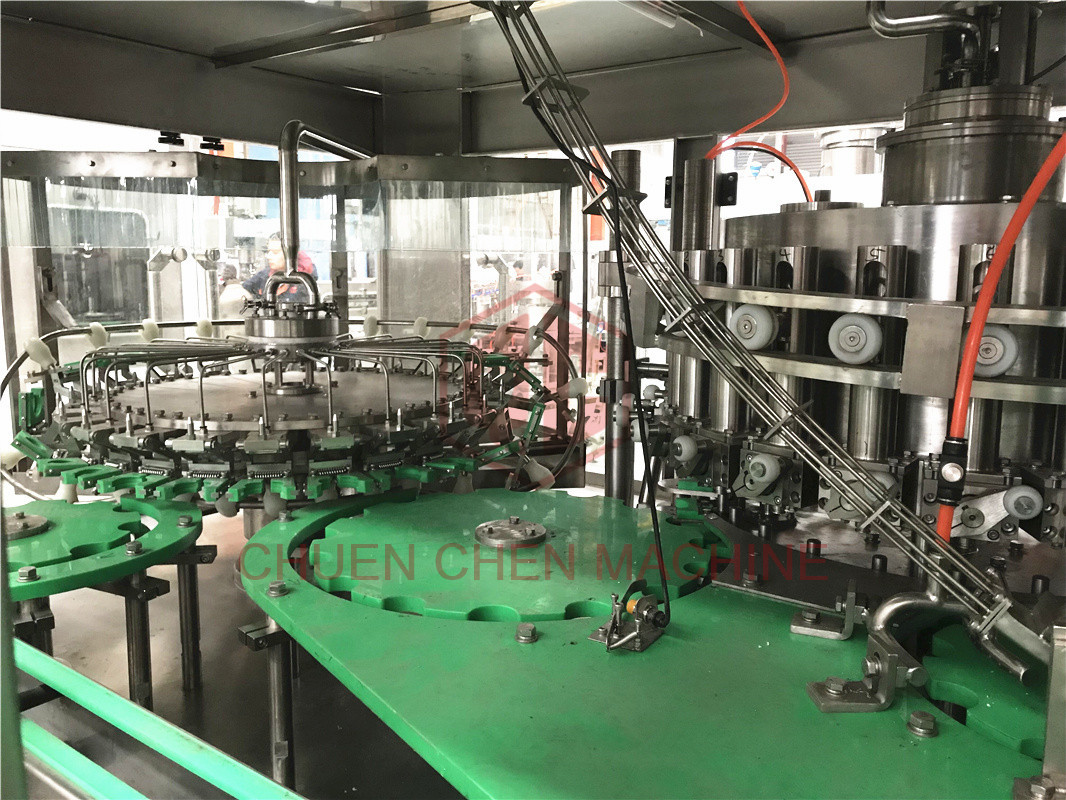

Detailed photo for ref
Glass Bottle Sauce Filling Machine With Fruit Pulp Processing Equipment
